Mechanical Seal ANSI Pump

For Quality Management System:
(Applicable for IAS Accredited Certification)

ISO logo
ISO logo

ISO 9001: Registered

Heavy-duty, rugged, world-class quality, ANSI process pumps manufactured to meet the latest ASME B73.1-2001 standard (revision of ASME B73.1M-1991). Pumps are manufactured in 29 sizes from a wide variety of materials, and offer seal options and seal flush systems to handle almost any application in the process industries.

Magnatex 3596 Series

Magnatex 3596 Series pumps and spare parts come with a 5-year unconditional warranty on materials and workmanship.

Spare Parts for Magnatex®, Goulds®, Griswold®, Summit® and Peerless® ANSI Pumps.

We guarantee that our parts will meet the original manufacturers'performance standards. Our parts department is ready to help you with your requirements 24/7.

Materials of Construction

  • Carbon Steel
  • 316 SS
  • CD4M-Cu
  • Alloy 20
  • Alloy B&C
  • Duplex Stainless Steel
  • Ni-Hard
  • Titanium


Connect with a Magnatex representative to learn more about our products or to request a quote.

Contact Us

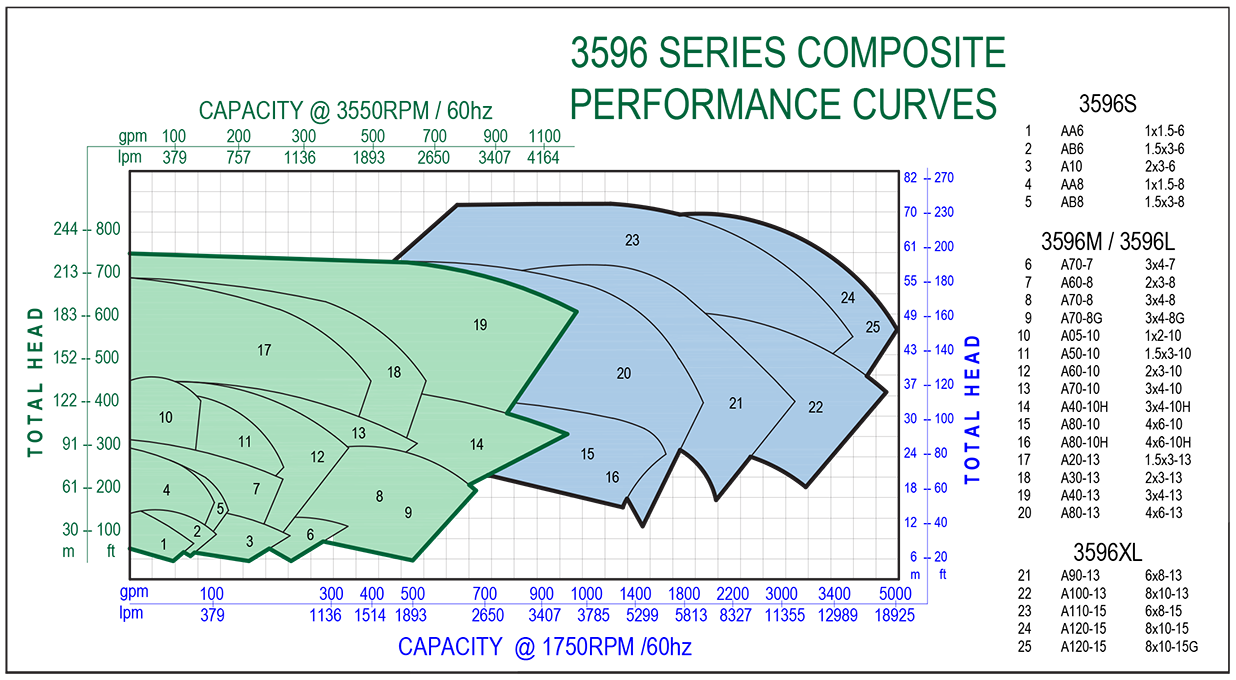

MAGNATEX 3596 Series Specifications

Max. Flow 5000 GPM
Max. Head 720 Feet
Liquid Temperature up to 700° F (371°C)
Max. Power 300 HP
Maximum Shaft Deflection 0.002 Inch (0.0508mm)
Connections 150lb FF std. or 300lb RF Optional
L10 Bearing Life 50,000 Hours
Maximum Working Pressure 275 psig (18.96 bar)
Impeller Enclosed
Speed Up to 3550 rpm (2959 @ 50hz)
Motor NEMA or IEC Foot Mounted

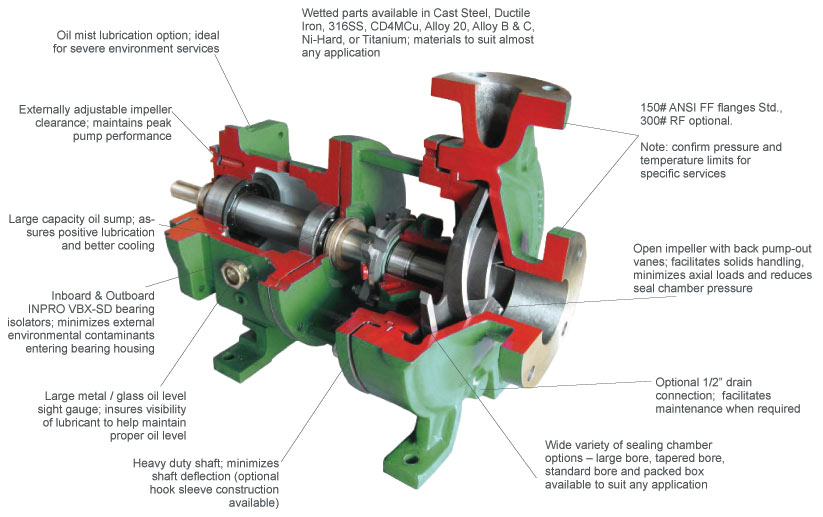

Mechanical Seal ANSI Process Pump
