ISO 9001:2015 Certified
Magnatex® MEP Series
Call us today at 713-972-8666 or 1-866-624-7867

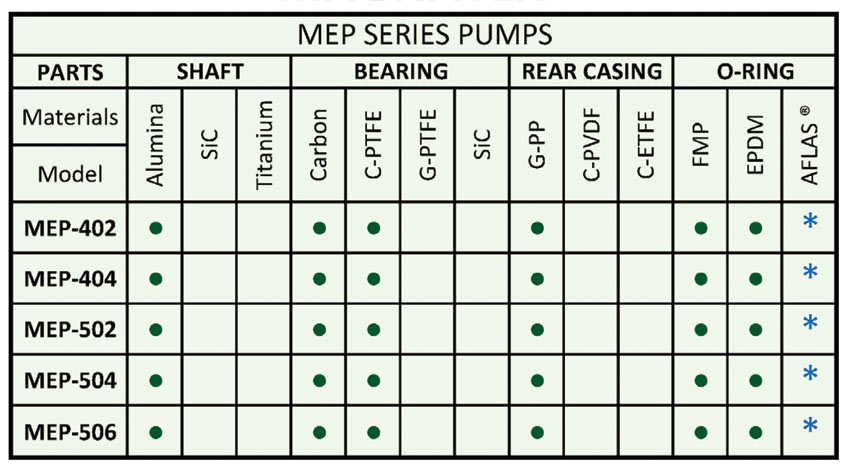

Material of Construction
Collaborate with Magnatex to learn ways to improve operational efficiencies, compress time to market by leveraging innovation.
Contact Us

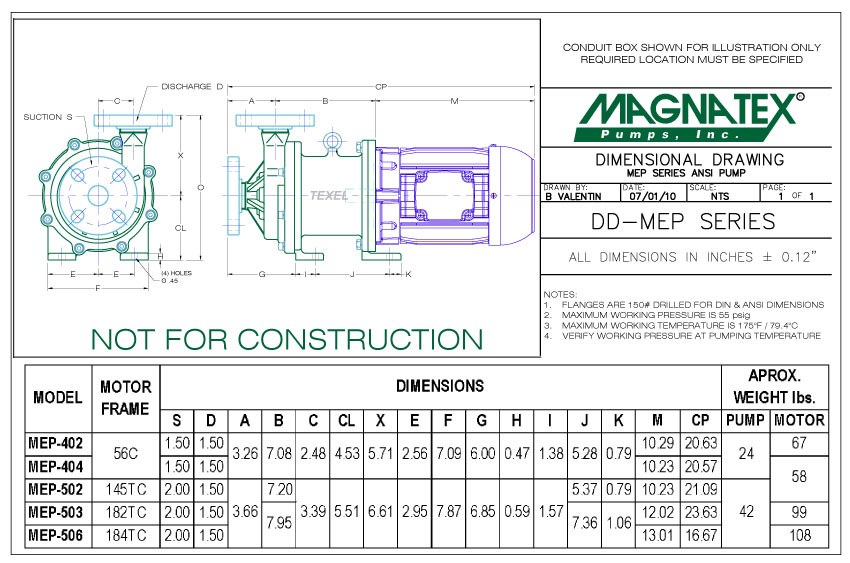

MAGNATEX® MEP Series Specifications
| Maximum Flow | 106 GPM |
|---|---|
| Maximum Head | 103 FT |
| Liquid Temperature | Maximum 175° F |
| Maximum Power | 5 HP |
| Connections | Drilled for DIN and ANSI Flanges |
| Bearings | Carbon, C-PTFE |
| Shaft | Ceramic |
| Maximum Working Pressure | 55 psig |
| Impeller | Enclosed |
| Speeds | Up to 3550 rpm |
| Magnets | Rare Earth |
| Motor | NEMA or IEC Frame Mounted |
